HOTDIVE

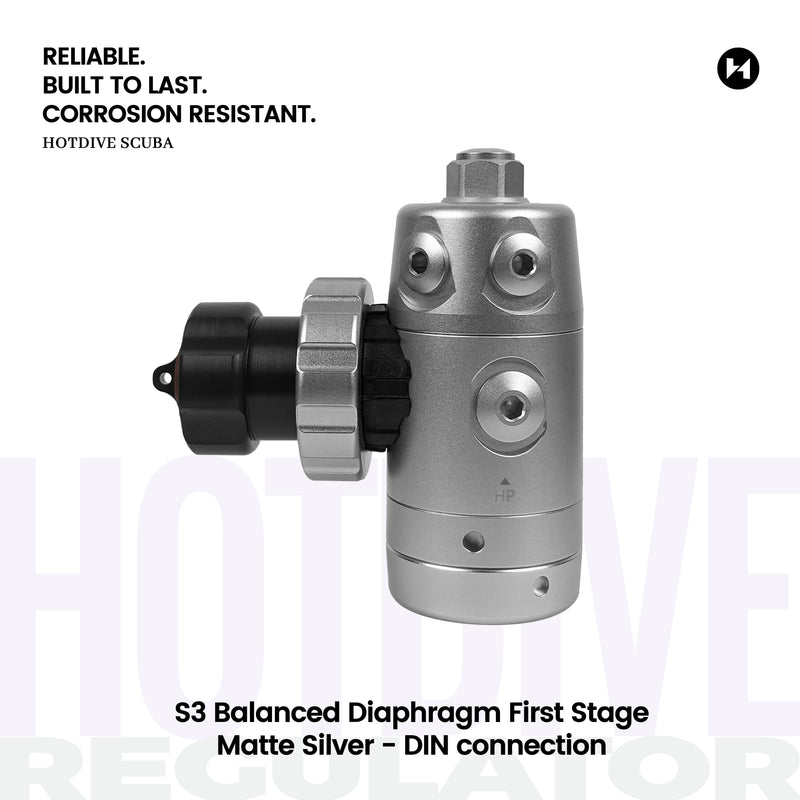

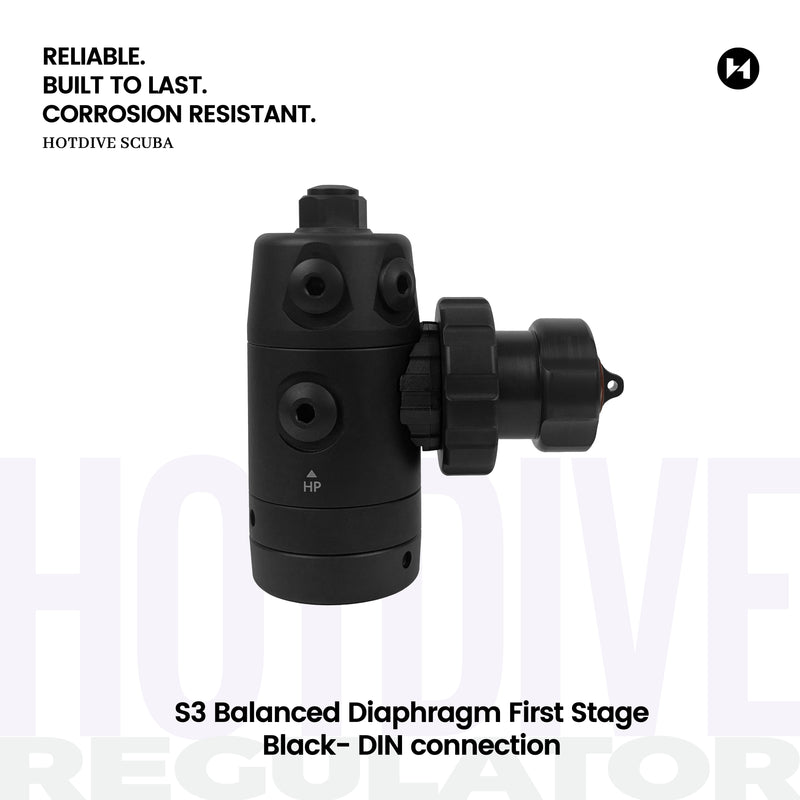

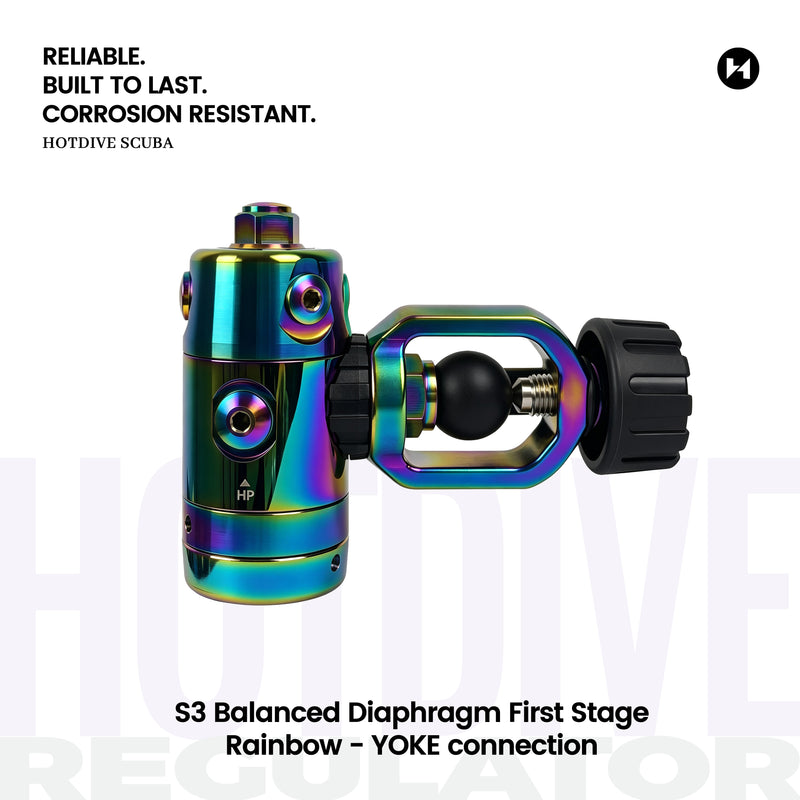

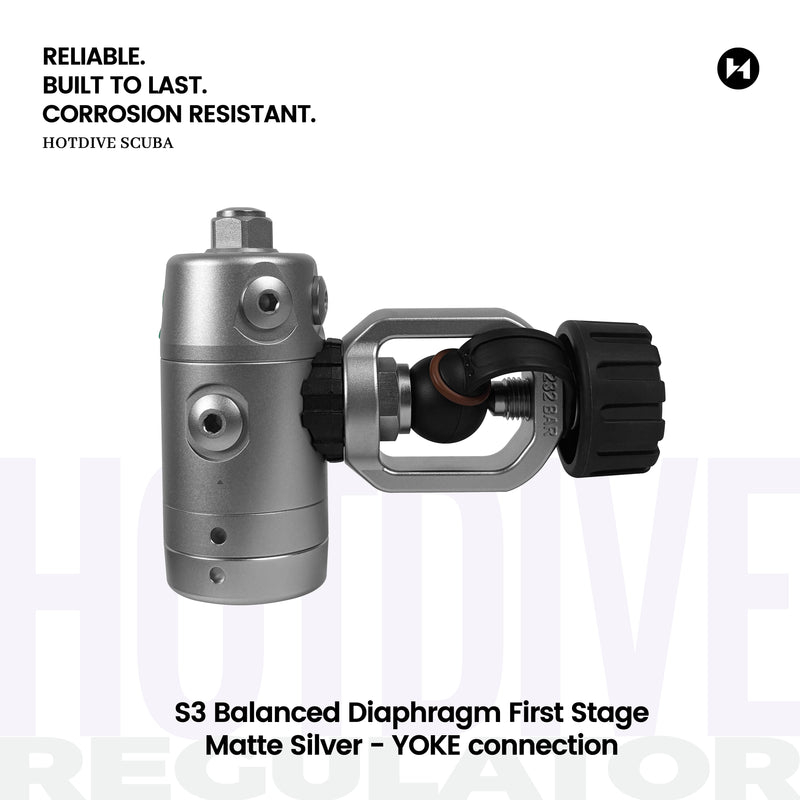

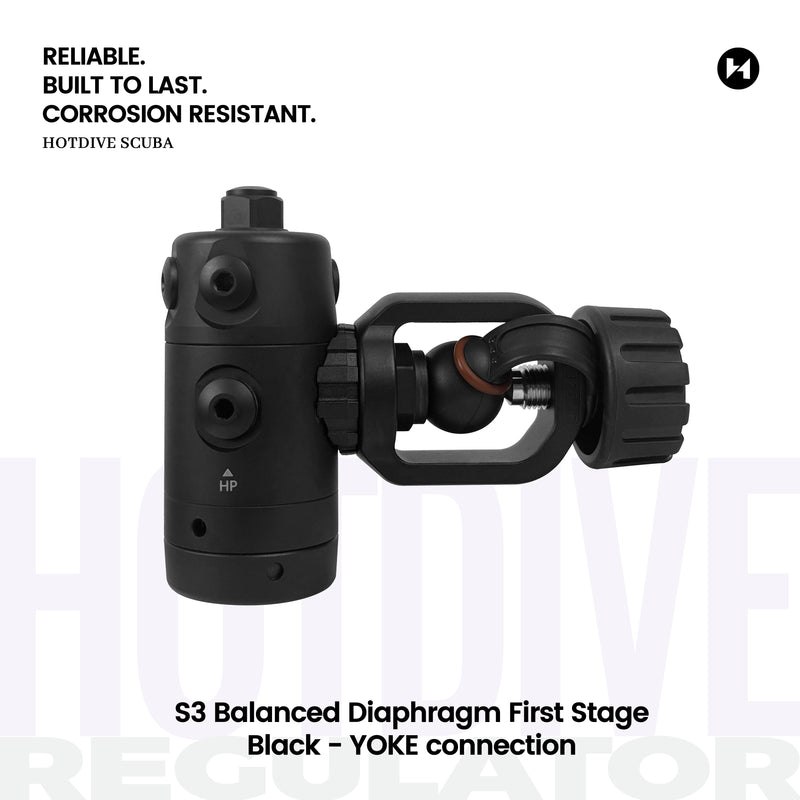

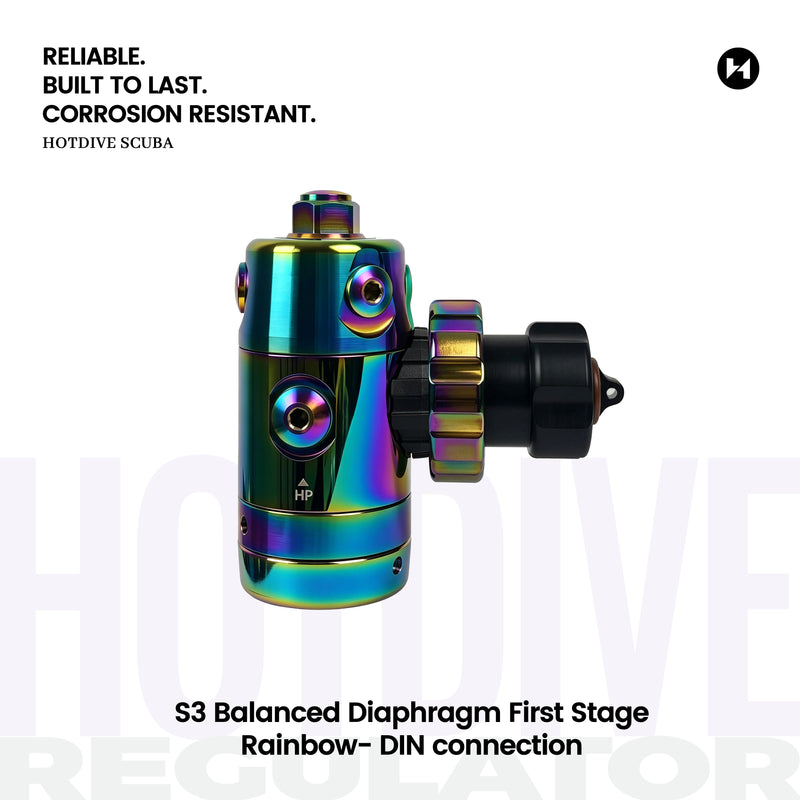

S3 Balanced Diaphragm First Stage
$310.00
Connection
Color
Back in stock
Notify me
when available
S3 Balanced Diaphragm First Stage — we'll email you the moment it's back in stock.
No spam. We'll only email you about this item.
01. Info
The S3 is HOTDIVE’s balanced diaphragm first stage for divers who ask more of their scuba diving regulator. The diaphragm design keeps the valve mechanism isolated from water, silt and contaminants — the layout of choice for demanding conditions — and the balanced mechanism guarantees consistent performance at any depth and with any supply pressure. A swivel turret puts five LP ports exactly where clean hose routing wants them, whether you are rigging a single-tank recreational setup, sidemount or doubles.
02. Features
- Balanced diaphragm design — valve mechanism isolated from water and sediment
- Swivel turret with 5 LP ports for clean, flexible hose routing
- 2 HP ports for gauge and transmitter
- Marine-grade SUS 316 stainless steel body and components with stainless steel springs
- The first stage of the ST3 and ST4 technical regulator sets
03. Specifications
- HP ports: 2 × 7/16" 20 UNF; LP ports: 5 × 3/8" 24 UNF
- Intermediate pressure: 130–145 psi (9–10 bar)
- Rated supply pressure: 232 bar (Yoke) / 300 bar (DIN)
- Weight: 764 g / 1.68 lb (DIN); 846 g / 1.87 lb (Yoke)
04. Options
- Connection: DIN or Yoke
- Finishes: Bright Silver, Matte Silver, Rainbow and Black
